MR Multimode Relay


● Push-to-test-button (may be locked-on by means of a Multimode Key)

● Universal socket

● 2 or 3 C/O

● high-quality contact material for 10A rated current

● optional gold-plated contacts for safe handling of signal loads

● coils for DC or AC (50/60Hz) operation

● snap on identification tags optional

MT Multimode Relay
2 / 3 pole 10A


● 2 or 3 changeover contacts

● DC and AC coils

● Mechanical indicator

● Electrical indicator

● New test system with front operated, finger protected push to test button and integral locking test lab

● White write on panel

ZG Miniature Relay


● 2 or 4 change over (Form C) contacts

● Current rating up to 5 A

● Solder lugs (plug-in relay) or P.C. terminals

● For control and automation systems, supervision of remote control systems, electrical appliances etc.

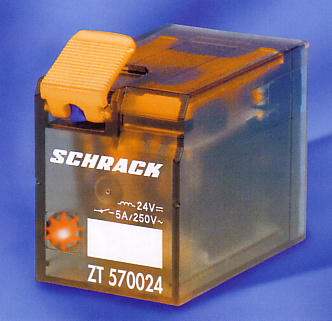

ZT Miniature-Relay
2 / 4 pole 5A

● 2 or 4 changeover contacts

● Cadmium-free contact material

● DC and AC coils

● Mechanical indicator

● Electrical indicator

● New test system with front operated finger protected push to test button and integral locking test lab

● White write on panel
