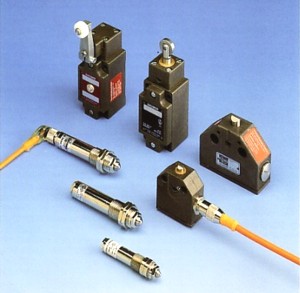

Precision
Single Limit Switches
are used throughout mechanical and plant engineering for control and positioning
tasks. The different types, sizes and switching functions, the choice
of four plunger ends and the simple conversion from longitudinal to lateral
actuation give the user a wide range of possible applications.
These single
limit switches are also available as safety switches to EN 60 204 (VDE
0113) for protection of operator and equipment.
Technical
Data
Housing: Anodized aluminum
Environmental protection: IP67
Switching principle: Snap action or positive opening
Operating point reproducibility: +/- 0.002 mm max
|
Position Switches
to EN 50 041 are unviersal control devices for the full range of mechanical
and plant engineering applications. Perfect design and the use of high quality
materials guarantee trouble-free operation even under extreme conditions. These
position switches are also available as safety switches to EN 60 204 (VDE 0113)
for protection of operator and equipment.
Roller lever or
plunger actuated, 10 different actuator types, 4 x 90 degree adjustment about
the longitudinal axis and switching direction change-over feature (for roller-lever
actuator) give the user a wide range of possible applications.
Technical
Data
Housing: Anodized aluminium
Environmental protection: IP67
Switching principal: Snap action or positive opening
Operating point reproducibility: +/- 0.002 mm max
Precision Single-hole
Fixing Limit Switches are control and position switches of cylindrical construction
for single-hole fixing.
Designs
- 5 basic types
- Sizes M14 x 1 and M18 x 1
Technical
Data
Housing: Brass, chromium-plated
Environmental protection: IP67
Actuator: Ball plunger
Switching principle: Snap action or reed contact
Operating point reproducibility: +/- 0.01 mm max
 |
Inductive
Single Limit Switches are electronic, contactless control devices
for positioning, controlling and monitoring movements, and are therefore
an important resource for automating producing processes.
For special
applications, versions are available with sensor heads suitable for temperatures
up to 200C degree.
Technical
Data
Housing: Anodized aluminum
Environmental protection: IP67
Sensing distance: Up to 5 mm
Operating voltage: 10-55V DC, 20-250V DC
Switching functions: NO, NC + NO
Construction: e.g. to DIN 43 693 and EN 50 041
|
