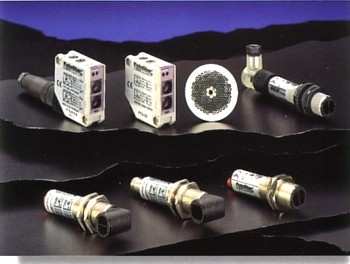

Photoelectric sensors FT series - Fotostar

These are infrared electronic transducers which supply an output signal when an object of any type of material passes into their range. Types available: Thru Beam (B), reflection with reflector (R) polarised reflection with reflector (AR) and direct reflection (P). Available in the cable or in the H plug version for M12 connector. The short circuit protection is incorporated.

FT18 SERIES : threaded plastic housing 18x1 mm. dia.
- Supply voltage: 10 ÷30 Vdc. 20 ÷250 Vac
- Led incorporated
- Programmable output PNP or NPN antiphase NO+NC
- Max. output current 200 mA
- Output MOSFET. NO/NC programmable, max output current 300 mA
- Available with axial beam or with 90 degree beam

FT18M SERIES: threaded metallic housing 18x1 mm dia.
- Supply voltage 10 ÷30 Vdc
- Sensitivity adjustment incorporated
- Two indicator led : green led-stability indicator, yellow led-operation indicator
- Available with axial beam or 90 beam

FTQ SERIES : rectangular plastic housing 18x50x50mm
- Supply voltage : 10 ÷30/12-240 Vdc/ac
- Sensitivity adjustment incorporated
- Two indicator led: green led-stability indicator, yellow led-operation indicator
- Programmable functions NPN/PNP, antiphase NO+NC
- Relay output changeover 1A at 220 Vac and Programmable relay ON/OFF
- In the H plug types the direction of the connector exit can be selected

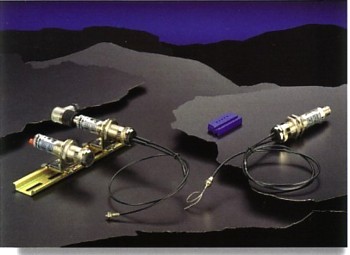

Fiber optic sensors - Fotostar

These sensors work electronically like any other photoelectric sensor, with the difference that the light emitted and received is transported by a fiber optic, which has a very small and variously shaped end and can be install away from the electronic circuit.

FT18M-CFR AMPLIFIER: threaded stainless steel cylindrical housing 18x1 mm.
- Supply voltage : 10 ÷30 Vdc
- Sensitivity adjustment Incorporated
- Two indicator led: green led-stability indicator and yellow led operation indicator
- Programmable output NPN/PNP , antiphase NO + NC max. output current 200 mA
- Short circuit protection
- Available in the cable version or in the H plug for M12 connector
- Single amplifier for both dectection systems
- Easy to install by using the available accessories

FIBER OPTIC : covered in plastic ploythene and metallic end
- Temperature limits : -40 ÷+70C degree
- Fiber optic standard length: 2 metres
- In various types it is possible to cut the fiber to the required length
- AT4101 lenses available for increasing sensing distance
- Possibility of diverting the rays by 90 using AT4102 lenses
- Types supplied with a bendable metallic end sleeves

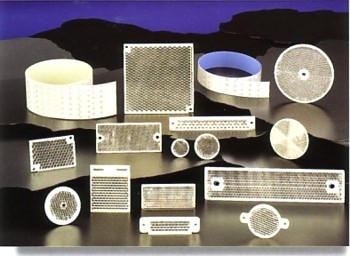

Reflectors CT series

In addition to the Fotostar programme by AECO we can offer a wide range of reflectors to used with the reflectors to be used with the reflection photocells which simplify most of the applications:
Every object which is placed between the photocell and the reflector interrupts the light and switches the photocell on. Reflectors are made of acrylic and polycarbonate material. They are also available in the adhesive scotchlight type. Our range of reflectors includes types suitable for polarised photocells.
They are also available in various dimensions: from the smallest circular one (20 mm.dia.) to the greatest square one (100x100 mm.)
AECO reflectors are very interesting because of their quality/price convenience
