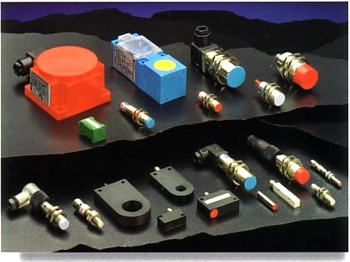

Inductive sensors SI series

These are electronic transducers which produce an output signal when a metallic object [steel, aluminium, copper, brass etc] enters into their sensing area from any direction without coming into contact.

- Cylindrical series 4-5-6.5-8-12-14-18-30mm.
- Rectangular series dim: 8x8x40 - 10x16x28 - 12x26x40 - 17x17x30 - 40x40x113 - 80x80x50mm.
- Fork series with 3.5mm gap
- Sensing distances from 1 ÷50 mm.
- NAMUR types from 5 ÷24 Vdc
- NAMUR EX types
- Amplified 2 wire types from 10 ÷30 Vdc.
- Amplified 3 and 4 wire types NPN or PNP from 10 ÷30 Vdc.
- Amplified 2 wire types 20 ÷250 Vdc.
- Led incorporated
- Short circuit protection for amplified types.
- max. output current for O.C. 200mA for AC. 300mA
- All types are available with cable or plug for connector.

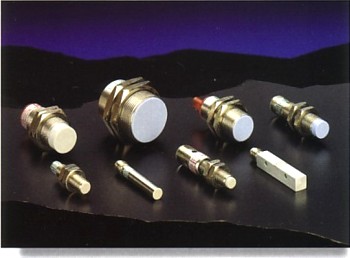

Inductive sensors with extended switching distance

These sensors which have identical mechanical and electrical characteristics to the standard sensors are supplied with double switching distance.

They are available in the 6.5-8-12-18-30 mm. dia. Embeddable with sensing distances of 2-2-4-8-15 mm respectively and not embeddable with sensing distances of 3-3-8-16-20 mm respectively.

- Amplified 3 wire types from 10 ÷30 Vdc
- Led incorporated
- Short circuit protection
- Stainless steel body for short version S
- All types are available with cable or plug for connector.

Inductive ring sensors SIA series

These are sensors which have their sensing area formed in a ring and sensing occurs when a metallic mass enters this ring. They are particularly suitable for sensing, counting and checking small metal parts: screws, nuts washers etc. or for similar applications.

They are supplied with internal diameter 5-12-15-22-25-30-44-63-100 mm.

- NAMUR types from 5 ÷24 Vdc
- NAMUR EX types
- Amplified 3 and 4 wire types NPN or PNP from 10 ÷30 Vdc
- SIA25 totally screened against mutual interference
- Led incorporated
- Max. output current 200mA
- Types with retained impulse 100 ms
- All types are available with cable or plug for connector
